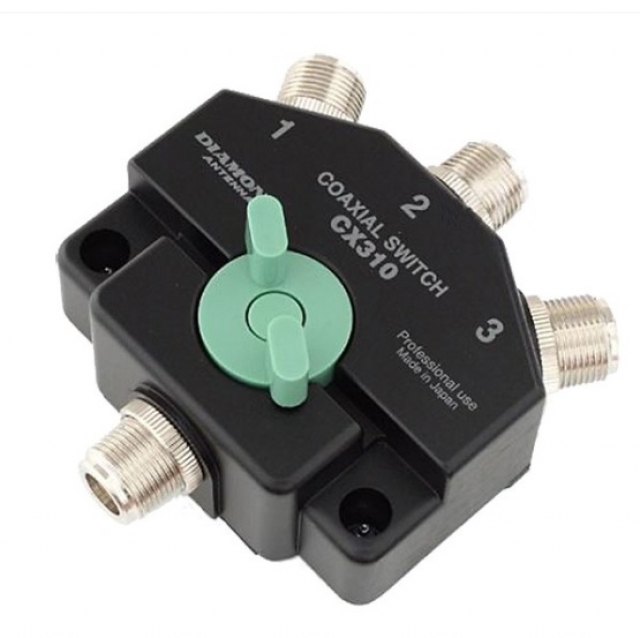

The Diamond CX-310N switch is a three-position low loss coaxial switch that provides very low loss and high isolation, being rated DC at 3000MHz and can withstand up to 1500 watts in HF frequencies, uses a N-type connector.

Diamond CX-310 N switch Specifications :
• Frequency: DC-1500MHz.
• Power: 1.5KW.
• Connector: N-type.
• Impedance: 50 ohms
• Insertion Loss
Less than 0.1dB DC to 500MHz.
Less than 0.2dB 500 to 150MHz.
• Isolation
More than 60dB DC to 500MHz.
More than 50dB 500 to 1500MHz.
• Weight: 0.6kg
