VHF MARINE TRANSCEIVERS

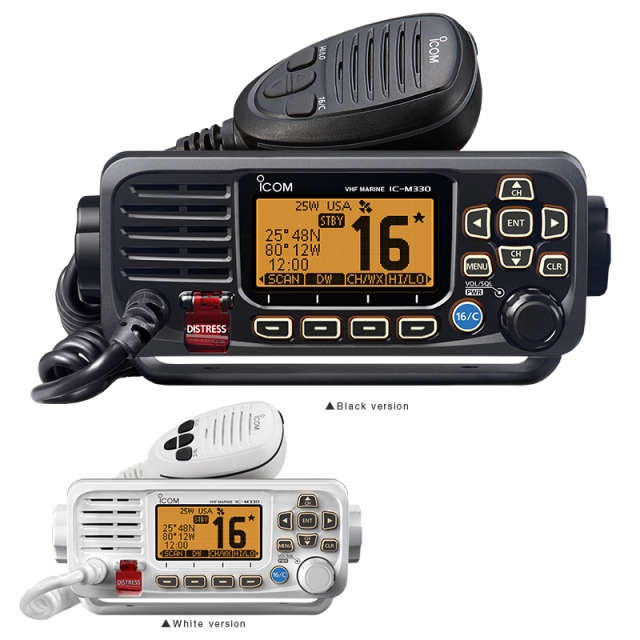

IC-M330GE

Top Performance Ultra Compact VHF

Ultra Compact Body, Flexible Installation with GPS receiver.
The IC-M330GE has a palm-sized compact body measuring only 156.5 (W) × 66.5 (H) ×110.1 (D) mm making it ideal for a cockpit where space is limited.The radio can be easy installed in limited space.

New Speaker Delivers Dynamic, Clear Audio
A new speaker design delivers dynamic and clear sound over a wide bass and treble range. The IC-M330GE provides a distortion-free clear audio even at full volume.

Built-in Class D DSC with a CH70 Dedicated Receiver
The radio monitors CH 70 continuously, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

Class Leading Receiver Performance
The IC-M330E/GE receiver provides reliable communication in RF busy environment like a marina.Class Leading Receiver Performance (Selectivity and IMD: more than 70 dB).

Intuitive Operation with Icom Marine User Interface
A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.

GPS Receiver Built-in with Supplied GPS Antenna (IC-M330GE)
A built-in GPS receiver provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. The acquired position information can be used for DSC calls.

Made in Japan Quality and Reliability
All Icom products are tested to pass rigorous in-house tests as well as environmental tests at the Wakayama Icom plant before shipping. Our world-leading products and quality is tradition.

Other Characteristics

IPX7 waterproof (1 m depth of water for 30 minutes)
AquaQuake™ Draining Function prevents audio degradation from a water-logged speaker
Common NMEA interface for external GPS/NAV connection
MA-500TR Class B AIS transponder compatible
Tag scan and favorite channel functions
Dual/tri-watch function for monitoring CH16 and/or call channel
Priority scan function
Easy-to-read Full Dot-Matrix Display
Display and keypad backlighting
External speaker connection
Weather channel with weather alert
Supplied hand microphone, HM-235B/W, with channel up/down keys and a CH16/Call channel key
3-digit or 4-digit channel display selectable

Supplied Accessories
HM-235B/W hand microphone, with channel up/down
keys and a CH16/Call channel key
DC power cable
Mounting bracket kit
GPS antenna (5 m; 16.4 ft cable)*
* Only for the IC-M330G.

General

TRANSMITTER

RECEIVER

Measurements made in accordance with TIA/EIA 603. All stated specifications are subject to change without notice or obligation.



Applicable IP Rating
